RM500U-CNV Jeson Orin Nano PECI模式无法拨号

MichaelYoung · 2025 年5 月 6 日 13:06

RM500U-CNV 在Jeson Orin Nano使用PCIE接口时，无法拨号，无法打开/dev/stty_nr31；相关信息如下：

模块模式确认以设置为0
AT+QCFG=“pcie/mode”

+QCFG: “pcie/mode”,0

OK

sprd_pcie版本V1.1.8，Makefile如下：

#
# Makefile for the sprd staging modem files
#
EXTRA_CFLAGS += -Wno-error -Wno-packed-bitfield-compat -Wno-unused-result -Wno-format
ccflags-y += -DCONFIG_SPRD_PCIE_EP_DEVICE
ccflags-y += -DCONFIG_SPRD_SIPA


########## Option feature ##########
# For NSS feature of some Qualcom platform(eg.ipq5018)
#ccflags-y += -DCONFIG_QCA_NSS_DRV

# define is normal mode, net dev type is ethernet;
# undefine is direct mode, net dev type is rawip, should set module to direct by
# using AT command[AT+QCFG="pcie/direct",1];
ccflags-y += -DCONFIG_SPRD_ETHERNET

# For pcie msi type interrupt
ccflags-y += -DCONFIG_PCI_IRQ_MSI

# For big endian platform
#ccflags-y += -DCONFIG_SIPC_BIG_TO_LITTLE


obj-y += sprd_pcie.o
sprd_pcie-objs := pcie/sprd_pcie_ep_device.o pcie/pcie_host_resource.o pcie/sprd_pcie_quirks.o sipc/sipc.o sipc/sblock.o sipc/sbuf.o \
                  sipc/sipc_debugfs.o sipc/smem.o sipc/smsg.o sipc/spipe.o sipc/spool.o power_manager/power_manager.o \
		  sipa/sipa_core.o sipa/sipa_eth.o sipa/sipa_nic.o sipa/sipa_skb_send.o sipa/sipa_skb_recv.o sipa/sipa_dummy.o  sipa/sipa_debugfs.o sipa/sipa_dele_cmn.o \
		  sipa/sipa_phy_v0/sipa_fifo_irq_hal.o sipa/sipa_phy_v0/sipa_common_fifo_hal.o

PWD := $(shell pwd)
ifeq ($(ARCH),)
ARCH := $(shell uname -m)
endif
ifeq ($(CROSS_COMPILE),)
CROSS_COMPILE :=
endif
ifeq ($(KDIR),)
KDIR := /lib/modules/$(shell uname -r)/build
endif

sprd_pcie: clean
	$(MAKE) ARCH=${ARCH} CROSS_COMPILE=${CROSS_COMPILE} -C $(KDIR) M=$(PWD) modules

clean:
	$(MAKE) ARCH=${ARCH} CROSS_COMPILE=${CROSS_COMPILE} -C $(KDIR) M=$(PWD) clean
	find . -name *.o.ur-safe | xargs rm -f

install: sprd_pcie
	sudo cp sprd_pcie.ko /lib/modules/${shell uname -r}/kernel/drivers/pci/
	sudo depmod

lspci -vvv结果如下

0009:00:00.0 PCI bridge: NVIDIA Corporation Device 229c (rev a1) (prog-if 00 [Normal decode])
        Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Latency: 0
        Interrupt: pin A routed to IRQ 191
        IOMMU group: 9
        Bus: primary=00, secondary=01, subordinate=ff, sec-latency=0
        I/O behind bridge: 0000f000-00000fff [disabled]
        Memory behind bridge: 40000000-40dfffff [size=14M]
        Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled]
        Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
        BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
                PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
        Capabilities: <access denied>
        Kernel driver in use: pcieport
        Kernel modules: tegra_pcie_dma_test

0009:01:00.0 Wireless controller: Synopsys, Inc. DWC_usb3 / PCIe bridge (rev 01)
        Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Latency: 0
        Interrupt: pin A routed to IRQ 250
        IOMMU group: 9
        Region 0: Memory at 3828000000 (32-bit, prefetchable) [size=4M]
        Region 1: Memory at 3828c00000 (32-bit, non-prefetchable) [size=64K]
        Region 2: Memory at 3828400000 (32-bit, prefetchable) [size=4M]
        Region 3: Memory at 3828c10000 (32-bit, non-prefetchable) [size=64K]
        Region 4: Memory at 3828800000 (32-bit, non-prefetchable) [size=4M]
        Region 5: Memory at 3828c20000 (32-bit, non-prefetchable) [size=64K]
        Capabilities: <access denied>
        Kernel driver in use: sprd-pcie-ep-device

访问stty_nr31报错

jetson@ubuntu:~$ sudo busybox microcom -s 115200 /dev/stty_nr31
microcom: can't open '/dev/stty_nr31': No such device

dmesg pcie相关日志：

[    7.123552] pcieport 0008:00:00.0: Adding to iommu group 8
[    7.123658] pcieport 0008:00:00.0: PME: Signaling with IRQ 189
[    7.123770] pcieport 0008:00:00.0: AER: enabled with IRQ 189
[    7.124734] tegra194-pcie 140c0000.pcie: Adding to iommu group 9
[    7.126053] tegra194-pcie 140c0000.pcie: host bridge /bus@0/pcie@140c0000 ranges:
[    7.126068] tegra194-pcie 140c0000.pcie:      MEM 0x3540000000..0x37ffffffff -> 0x3540000000
[    7.126074] tegra194-pcie 140c0000.pcie:      MEM 0x3828000000..0x382fffffff -> 0x0040000000
[    7.126077] tegra194-pcie 140c0000.pcie:       IO 0x002c100000..0x002c1fffff -> 0x002c100000
[    7.126348] tegra194-pcie 140c0000.pcie: iATU unroll: enabled
[    7.126350] tegra194-pcie 140c0000.pcie: Detected iATU regions: 8 outbound, 2 inbound
[    7.232026] tegra194-pcie 140c0000.pcie: Link up
[    7.234659] tegra194-pcie 140c0000.pcie: Link up
[    7.234734] tegra194-pcie 140c0000.pcie: PCI host bridge to bus 0009:00
[    7.255095] pcieport 0009:00:00.0: Adding to iommu group 9
[    7.255193] pcieport 0009:00:00.0: PME: Signaling with IRQ 191
[    7.255550] pcieport 0009:00:00.0: AER: enabled with IRQ 191
[    7.255730] sprd-pcie-ep-device 0009:01:00.0: Adding to iommu group 9
[    7.255782] sprd-pcie-ep-device 0009:01:00.0: ep: probe
[    7.255820] sprd-pcie-ep-device 0009:01:00.0: enabling device (0000 -> 0002)
[    7.256338] sprd-pcie-ep-device 0009:01:00.0: pci alloc msi irq cnt = 32
[    7.256340] sprd-pcie-ep-device 0009:01:00.0: ep: BAR[0] [mem 0x3828000000-0x38283fffff pref]
[    7.256342] sprd-pcie-ep-device 0009:01:00.0: ep: BAR[1] [mem 0x3828c00000-0x3828c0ffff]
[    7.256343] sprd-pcie-ep-device 0009:01:00.0: ep: BAR[2] [mem 0x3828400000-0x38287fffff pref]
[    7.256345] sprd-pcie-ep-device 0009:01:00.0: ep: BAR[3] [mem 0x3828c10000-0x3828c1ffff]
[    7.256346] sprd-pcie-ep-device 0009:01:00.0: ep: BAR[4] [mem 0x3828800000-0x3828bfffff]
[    7.256347] sprd-pcie-ep-device 0009:01:00.0: ep: BAR[5] [mem 0x3828c20000-0x3828c2ffff]
[    7.256370] sprd-pcie-ep-device 0009:01:00.0: ep: atu_view_port val = 0xffffffff
[    7.256377] sprd-pcie-ep-device 0009:01:00.0: ep: request IRQ = 250, cnt =32
[    7.256387] sprd-pcie-ep-device 0009:01:00.0: pass_smem, base=0x80400000,size=0x300000
[    7.256388] pcie res: ep_notify, probed cnt=1.
[   12.245270] tegra-mc 2c00000.memory-controller: pcie9ar: secure read @0x000000ffffffff00: EMEM address decode error (EMEM decode error)
[   12.245276] tegra-mc 2c00000.memory-controller: pcie9aw: secure write @0x00000003ffffff00: VPR violation ((null))
[   12.245280] tegra-mc 2c00000.memory-controller: pcie9aw: secure write @0x00000003ffffff00: Route Sanity error ((null))
[   12.274535] sipa_eth: dev 0x00000000459dc295 eth 0x00000000c0bef13a open pcie0 netid 0 term 0 mac_h 1
[   12.278060] sipa_eth: dev 0x000000006aaae94d eth 0x000000006f0d6fe3 open pcie1 netid 1 term 0 mac_h 1
[   12.282097] sipa_eth: dev 0x000000008878bd8d eth 0x000000007a580e27 open pcie2 netid 2 term 0 mac_h 1
[   12.285245] sipa_eth: dev 0x00000000c3986fad eth 0x0000000050dc0ab7 open pcie3 netid 3 term 0 mac_h 1

MichaelYoung · 2025 年5 月 12 日 01:45

尝试关闭SMMU后，驱动出现会出现周期性报错

[   25.442800] Disable interrupt bit = 0x3 set failed!
[   25.442821] Disable interrupt bit = 0x3 set failed!
[   25.442828] virt_sipa virt_sipa: sipa overflow on ep
[   25.442964] Disable interrupt bit = 0x3 set failed!
[   25.442974] Disable interrupt bit = 0x3 set failed!
[   25.442976] virt_sipa virt_sipa: sipa overflow on ep
[   25.443067] virt_sipa virt_sipa: phy addr is null = 0
[   25.443112] update tx fifo rptr fail !!!
[   25.443117] virt_sipa virt_sipa: recv addr is null, but recv_array addr:0x2fbfe0800
[   25.443120] sipa_dummy: sipa no data
[   25.443327] pcieport 0009:00:00.0: AER: Multiple Corrected error received: 0009:00:00.0
[   25.443408] pcieport 0009:00:00.0: PCIe Bus Error: severity=Corrected, type=Physical Layer, (Receiver ID)
[   25.443411] pcieport 0009:00:00.0:   device [10de:229c] error status/mask=00000001/0000e000
[   25.443415] pcieport 0009:00:00.0:    [ 0] RxErr                  (First)
[   25.443461] pcieport 0009:00:00.0: AER: Multiple Uncorrected (Fatal) error received: 0009:00:00.0
[   25.443510] pcieport 0009:00:00.0: PCIe Bus Error: severity=Uncorrected (Fatal), type=Transaction Layer, (Requester ID)
[   25.443517] pcieport 0009:00:00.0:   device [10de:229c] error status/mask=00004020/00400000
[   25.443520] pcieport 0009:00:00.0:    [ 5] SDES                   (First)
[   25.443528] pcieport 0009:00:00.0:    [14] CmpltTO
[   25.443542] sprd-pcie-ep-device 0009:01:00.0: AER: can't recover (no error_detected callback)
[   25.446086] usb 1-2.3: USB disconnect, device number 4
[   25.447131] rndis_host 1-2.3:1.0 usb2: unregister 'rndis_host' usb-3610000.usb-2.3, RNDIS device
[   25.448195] tegra-xusb 3610000.usb: ERROR Transfer event TRB DMA ptr not part of current TD ep_index 2 comp_code 4
[   25.448201] tegra-xusb 3610000.usb: Looking for event-dma 0000007ffffbb190 trb-start 0000007ffffbb1a0 trb-end 0000007ffffbb210 seg-start 0000007ffffbb000 seg-end 0000007ffffbbff0
[   25.448330] tegra-xusb 3610000.usb: ERROR Transfer event TRB DMA ptr not part of current TD ep_index 2 comp_code 4
[   25.448333] tegra-xusb 3610000.usb: Looking for event-dma 0000007ffffbb190 trb-start 0000007ffffbb1a0 trb-end 0000007ffffbb2d0 seg-start 0000007ffffbb000 seg-end 0000007ffffbbff0
[   25.488820] option1 ttyUSB9: GSM modem (1-port) converter now disconnected from ttyUSB9
[   25.488863] option 1-2.3:1.2: device disconnected
[   25.489335] option1 ttyUSB10: GSM modem (1-port) converter now disconnected from ttyUSB10
[   25.489378] option 1-2.3:1.3: device disconnected
[   25.500436] option1 ttyUSB11: GSM modem (1-port) converter now disconnected from ttyUSB11
[   25.500565] option 1-2.3:1.4: device disconnected
[   25.507257] option1 ttyUSB12: GSM modem (1-port) converter now disconnected from ttyUSB12
[   25.507309] option 1-2.3:1.5: device disconnected
[   25.514853] option1 ttyUSB13: GSM modem (1-port) converter now disconnected from ttyUSB13
[   25.514903] option 1-2.3:1.6: device disconnected
[   25.587803] pcieport 0009:00:00.0: AER: Root Port link has been reset (0)
[   25.587864] pcieport 0009:00:00.0: AER: device recovery failed
[   39.987783] usb 1-2.3: new high-speed USB device number 5 using tegra-xusb
[   40.108909] rndis_host 1-2.3:1.0 usb2: register 'rndis_host' at usb-3610000.usb-2.3, RNDIS device, 86:1b:18:bf:f8:86
[   40.109871] option 1-2.3:1.2: GSM modem (1-port) converter detected
[   40.110089] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB9
[   40.110281] option 1-2.3:1.3: GSM modem (1-port) converter detected
[   40.110528] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB10
[   40.110813] option 1-2.3:1.4: GSM modem (1-port) converter detected
[   40.111046] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB11
[   40.111226] option 1-2.3:1.5: GSM modem (1-port) converter detected
[   40.111405] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB12
[   40.111634] option 1-2.3:1.6: GSM modem (1-port) converter detected
[   40.111853] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB13
[  100.040764] Disable interrupt bit = 0x3 set failed!
[  100.040785] Disable interrupt bit = 0x3 set failed!
[  100.040791] virt_sipa virt_sipa: sipa overflow on ep
[  100.040901] Disable interrupt bit = 0x3 set failed!
[  100.040912] Disable interrupt bit = 0x3 set failed!
[  100.040915] virt_sipa virt_sipa: sipa overflow on ep
[  100.040970] virt_sipa virt_sipa: phy addr is null = 0
[  100.040991] update tx fifo rptr fail !!!
[  100.040997] virt_sipa virt_sipa: recv addr is null, but recv_array addr:0x2fbfe1000
[  100.041003] sipa_dummy: sipa no data
[  100.041091] pcieport 0009:00:00.0: AER: Multiple Corrected error received: 0009:00:00.0
[  100.041141] pcieport 0009:00:00.0: PCIe Bus Error: severity=Corrected, type=Physical Layer, (Receiver ID)
[  100.041145] pcieport 0009:00:00.0:   device [10de:229c] error status/mask=00000001/0000e000
[  100.041155] pcieport 0009:00:00.0:    [ 0] RxErr                  (First)
[  100.041172] pcieport 0009:00:00.0: AER: Multiple Uncorrected (Fatal) error received: 0009:00:00.0
[  100.041237] pcieport 0009:00:00.0: PCIe Bus Error: severity=Uncorrected (Fatal), type=Transaction Layer, (Requester ID)
[  100.041239] pcieport 0009:00:00.0:   device [10de:229c] error status/mask=00004020/00400000
[  100.041242] pcieport 0009:00:00.0:    [ 5] SDES                   (First)
[  100.041244] pcieport 0009:00:00.0:    [14] CmpltTO
[  100.041253] sprd-pcie-ep-device 0009:01:00.0: AER: can't recover (no error_detected callback)
[  100.181838] usb 1-2.3: USB disconnect, device number 5
[  100.182256] rndis_host 1-2.3:1.0 usb2: unregister 'rndis_host' usb-3610000.usb-2.3, RNDIS device
[  100.187823] pcieport 0009:00:00.0: AER: Root Port link has been reset (0)
[  100.187865] pcieport 0009:00:00.0: AER: device recovery failed
[  100.220687] option1 ttyUSB9: GSM modem (1-port) converter now disconnected from ttyUSB9
[  100.220755] option 1-2.3:1.2: device disconnected
[  100.222587] option1 ttyUSB10: GSM modem (1-port) converter now disconnected from ttyUSB10
[  100.222648] option 1-2.3:1.3: device disconnected
[  100.223447] option1 ttyUSB11: GSM modem (1-port) converter now disconnected from ttyUSB11
[  100.223515] option 1-2.3:1.4: device disconnected
[  100.229085] option1 ttyUSB12: GSM modem (1-port) converter now disconnected from ttyUSB12
[  100.229145] option 1-2.3:1.5: device disconnected
[  100.234084] option1 ttyUSB13: GSM modem (1-port) converter now disconnected from ttyUSB13
[  100.234130] option 1-2.3:1.6: device disconnected
[  114.740067] usb 1-2.3: new high-speed USB device number 6 using tegra-xusb
[  114.859654] rndis_host 1-2.3:1.0 usb2: register 'rndis_host' at usb-3610000.usb-2.3, RNDIS device, 76:a3:ef:a0:e1:68
[  114.860768] option 1-2.3:1.2: GSM modem (1-port) converter detected
[  114.861308] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB9
[  114.861583] option 1-2.3:1.3: GSM modem (1-port) converter detected
[  114.861890] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB10
[  114.863659] option 1-2.3:1.4: GSM modem (1-port) converter detected
[  114.863951] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB11
[  114.864241] option 1-2.3:1.5: GSM modem (1-port) converter detected
[  114.864450] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB12
[  114.866269] option 1-2.3:1.6: GSM modem (1-port) converter detected
[  114.866757] usb 1-2.3: GSM modem (1-port) converter now attached to ttyUSB13

stty_nr31可打开，但是无法正常访问拨号（打开后卡死）

附上详细的lspci -vvv信息

0009:00:00.0 PCI bridge: NVIDIA Corporation Device 229c (rev a1) (prog-if 00 [Normal decode])
        Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR+ <PERR- INTx-
        Latency: 0
        Interrupt: pin A routed to IRQ 191
        Bus: primary=00, secondary=01, subordinate=ff, sec-latency=0
        I/O behind bridge: 0000f000-00000fff [disabled]
        Memory behind bridge: 40000000-40dfffff [size=14M]
        Prefetchable memory behind bridge: 00000000fff00000-00000000000fffff [disabled]
        Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
        BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B-
                PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
        Capabilities: [40] Power Management version 3
                Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold-)
                Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
        Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
                Address: 0000000000000000  Data: 0000
                Masking: 00000000  Pending: 00000000
        Capabilities: [70] Express (v2) Root Port (Slot-), MSI 00
                DevCap: MaxPayload 256 bytes, PhantFunc 0
                        ExtTag- RBE+
                DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
                        RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+
                        MaxPayload 128 bytes, MaxReadReq 512 bytes
                DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
                LnkCap: Port #0, Speed 8GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <1us, L1 <64us
                        ClockPM- Surprise+ LLActRep+ BwNot+ ASPMOptComp+
                LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
                        ExtSynch- ClockPM- AutWidDis- BWInt+ AutBWInt-
                LnkSta: Speed 5GT/s (downgraded), Width x1 (ok)
                        TrErr- Train- SlotClk+ DLActive+ BWMgmt- ABWMgmt+
                RootCap: CRSVisible+
                RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna+ CRSVisible+
                RootSta: PME ReqID 0000, PMEStatus- PMEPending-
                DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP+ LTR+
                         10BitTagComp+ 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
                         EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
                         FRS- LN System CLS Not Supported, TPHComp- ExtTPHComp- ARIFwd+
                         AtomicOpsCap: Routing- 32bit- 64bit- 128bitCAS-
                DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- OBFF Disabled, ARIFwd-
                         AtomicOpsCtl: ReqEn- EgressBlck-
                LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer+ 2Retimers+ DRS-
                LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
                         Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                         Compliance De-emphasis: -6dB
                LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
                         EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
                         Retimer- 2Retimers- CrosslinkRes: Downstream Port
        Capabilities: [b0] MSI-X: Enable- Count=8 Masked-
                Vector table: BAR=2 offset=00000000
                PBA: BAR=2 offset=00010000
        Capabilities: [100 v2] Advanced Error Reporting
                UESta:  DLP- SDES+ TLP- FCP- CmpltTO+ CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
                UEMsk:  DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
                UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
                CESta:  RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
                CEMsk:  RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
                AERCap: First Error Pointer: 05, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
                        MultHdrRecCap+ MultHdrRecEn- TLPPfxPres- HdrLogCap-
                HeaderLog: 00000000 00000000 00000000 00000000
                RootCmd: CERptEn+ NFERptEn+ FERptEn+
                RootSta: CERcvd- MultCERcvd- UERcvd- MultUERcvd-
                         FirstFatal- NonFatalMsg- FatalMsg- IntMsg 0
                ErrorSrc: ERR_COR: 0000 ERR_FATAL/NONFATAL: 0000
        Capabilities: [148 v1] Secondary PCI Express
                LnkCtl3: LnkEquIntrruptEn- PerformEqu-
                LaneErrStat: 0
        Capabilities: [168 v1] Physical Layer 16.0 GT/s <?>
        Capabilities: [18c v1] Lane Margining at the Receiver <?>
        Capabilities: [1ac v1] L1 PM Substates
                L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2- ASPM_L1.1- L1_PM_Substates+
                          PortCommonModeRestoreTime=60us PortTPowerOnTime=40us
                L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
                           T_CommonMode=60us
                L1SubCtl2: T_PwrOn=40us
        Capabilities: [1bc v1] Vendor Specific Information: ID=0002 Rev=4 Len=100 <?>
        Capabilities: [2bc v1] Vendor Specific Information: ID=0001 Rev=1 Len=038 <?>
        Capabilities: [2f4 v1] Data Link Feature <?>
        Capabilities: [300 v1] Precision Time Measurement
                PTMCap: Requester:+ Responder:+ Root:+
                PTMClockGranularity: 16ns
                PTMControl: Enabled:- RootSelected:-
                PTMEffectiveGranularity: Unknown
        Capabilities: [30c v1] Vendor Specific Information: ID=0004 Rev=1 Len=054 <?>
        Capabilities: [374 v1] Vendor Specific Information: ID=0006 Rev=0 Len=018 <?>
        Kernel driver in use: pcieport
        Kernel modules: tegra_pcie_dma_test

0009:01:00.0 Wireless controller: Synopsys, Inc. DWC_usb3 / PCIe bridge (rev 01)
        Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Interrupt: pin A routed to IRQ 191
        Region 0: Memory at 3828000000 (32-bit, prefetchable) [virtual] [size=4M]
        Region 1: Memory at 3828c00000 (32-bit, non-prefetchable) [virtual] [size=64K]
        Region 2: Memory at 3828400000 (32-bit, prefetchable) [virtual] [size=4M]
        Region 3: Memory at 3828c10000 (32-bit, non-prefetchable) [virtual] [size=64K]
        Region 4: Memory at 3828800000 (32-bit, non-prefetchable) [virtual] [size=4M]
        Region 5: Memory at 3828c20000 (32-bit, non-prefetchable) [virtual] [size=64K]
        Capabilities: [40] Power Management version 3
                Flags: PMEClk- DSI- D1+ D2- AuxCurrent=375mA PME(D0+,D1+,D2-,D3hot+,D3cold+)
                Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
        Capabilities: [50] MSI: Enable- Count=1/32 Maskable+ 64bit+
                Address: 0000000000000000  Data: 0000
                Masking: 00000000  Pending: 00000000
        Capabilities: [70] Express (v2) Endpoint, MSI 00
                DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <256ns, L1 <2us
                        ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset- SlotPowerLimit 0.000W
                DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
                        RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop-
                        MaxPayload 128 bytes, MaxReadReq 512 bytes
                DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr+ TransPend-
                LnkCap: Port #0, Speed 5GT/s, Width x1, ASPM L0s L1, Exit Latency L0s <256ns, L1 <2us
                        ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp-
                LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
                        ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
                LnkSta: Speed 5GT/s (ok), Width x1 (ok)
                        TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
                DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR+
                         10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
                         EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
                         FRS- TPHComp- ExtTPHComp-
                         AtomicOpsCap: 32bit- 64bit- 128bitCAS-
                DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- OBFF Disabled,
                         AtomicOpsCtl: ReqEn-
                LnkCap2: Supported Link Speeds: 2.5-5GT/s, Crosslink- Retimer- 2Retimers- DRS-
                LnkCtl2: Target Link Speed: 5GT/s, EnterCompliance- SpeedDis-
                         Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                         Compliance De-emphasis: -6dB
                LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
                         EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
                         Retimer- 2Retimers- CrosslinkRes: unsupported
        Capabilities: [b0] MSI-X: Enable- Count=65 Masked-
                Vector table: BAR=5 offset=00000000
                PBA: BAR=5 offset=00002000
        Capabilities: [100 v2] Advanced Error Reporting
                UESta:  DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq+ ACSViol-
                UEMsk:  DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
                UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
                CESta:  RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
                CEMsk:  RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
                AERCap: First Error Pointer: 14, ECRCGenCap- ECRCGenEn- ECRCChkCap+ ECRCChkEn-
                        MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
                HeaderLog: 40000001 0000000f 40c009b0 00000000
        Capabilities: [148 v1] Latency Tolerance Reporting
                Max snoop latency: 0ns
                Max no snoop latency: 0ns
        Capabilities: [150 v1] L1 PM Substates
                L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
                          PortCommonModeRestoreTime=10us PortTPowerOnTime=10us
                L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
                           T_CommonMode=0us LTR1.2_Threshold=0ns
                L1SubCtl2: T_PwrOn=10us
        Capabilities: [160 v1] Vendor Specific Information: ID=0002 Rev=4 Len=100 <?>
        Capabilities: [260 v1] Physical Resizable BAR
                BAR 0: current size: 64MB, supported: 4MB 8MB 16MB 64MB
                BAR 2: current size: 32MB, supported: 4MB 8MB 16MB 32MB
                BAR 4: current size: 1MB, supported: 1MB
        Kernel driver in use: sprd-pcie-ep-device

BiaoWang-Q · 2025 年5 月 12 日 01:46

怀疑RM500U在重启。
要结合RM500U的内核日志来分析的。

MichaelYoung · 2025 年5 月 12 日 10:08

我切换到USB模式是正常的，可以正常拨号上网。 RM500的日志怎么抓？需要什么工具？可以发我一下吗？

BiaoWang-Q · 2025 年5 月 12 日 10:09

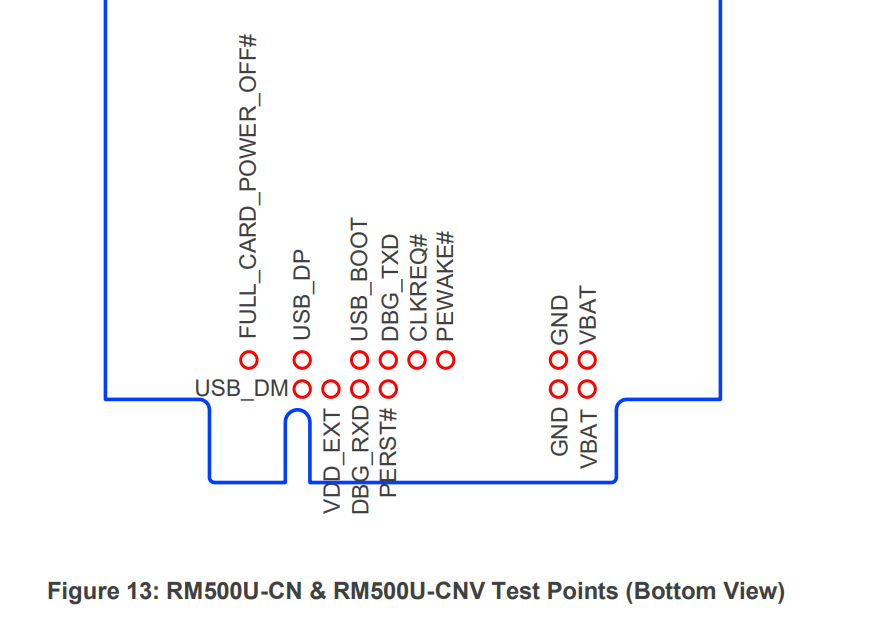

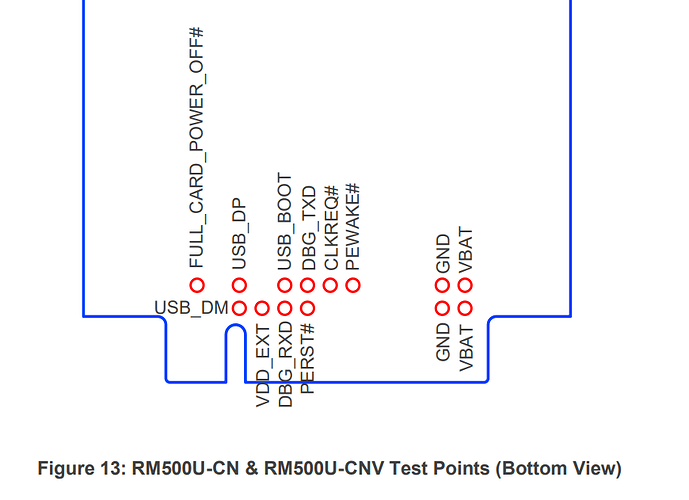

接出模块的debug串口，同时抓模块的debug 日志。

MichaelYoung · 2025 年5 月 14 日 01:38

抓了一份QLog日志，看是否能分析出问题， Debug口的硬件还在处理，稍后会抓出来.
通过网盘分享的文件：apdump_20250513_220834.7z
链接: 百度网盘请输入提取码提取码: etku

BiaoWang-Q · 2025 年5 月 14 日 01:39

PCIe枚举不需要QLog.
PCIe 对开机时序有要求。

MichaelYoung · 2025 年5 月 14 日 03:40

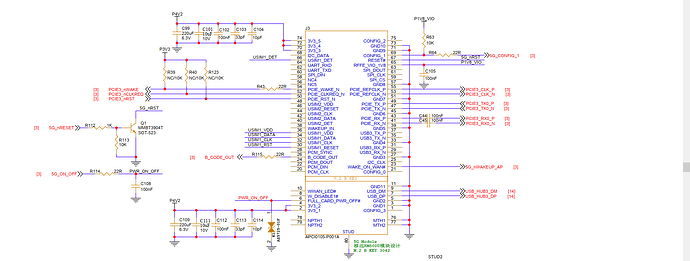

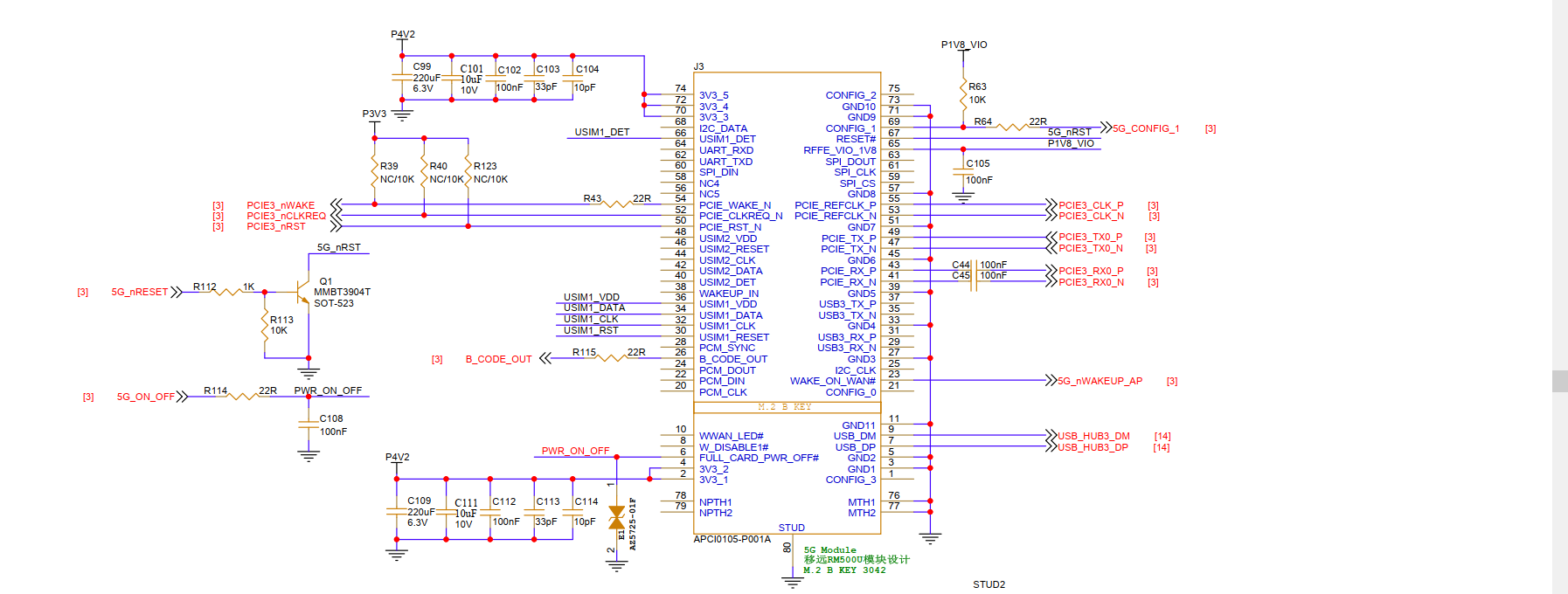

现在开启时序为：
Boot层同时打开P4V2和拉低5G_nRESET(RESET#拉高)，在系统起来是拉高5G_ON_OFF.

请问时序还有什么问题吗？需要注意和修改哪些地方吗？

MichaelYoung · 2025 年5 月 14 日 03:46

抓包时用了下面几个命令抓dump
root@cqh6:~/qlog_new# busybox microcom /dev/ttyUSB2
at+qcfg=“aprstlevel”,0
OK
at+qcfg=“modemrstlevel”,0
OK
at+qcfg=“dbgctl”,0
OK
at+qtest=“dump”,1

现在模块要如何恢复？（现在系统开机30多秒后USB断开了，也不会重启了）

MichaelYoung · 2025 年5 月 16 日 02:56

2025-05.7z (5.4 KB)
抓取的Debug口日志及dmesg日志，请帮忙看下是哪里问题

BiaoWang-Q · 2025 年5 月 16 日 08:18

log 里能看到模组是pcie ep mode了，且模块拉了pcie_wake.
没有看到主控拉pcie_rst.
另外，日志看到模块两次开机，模块是否有重启。

MichaelYoung · 2025 年5 月 18 日 08:53

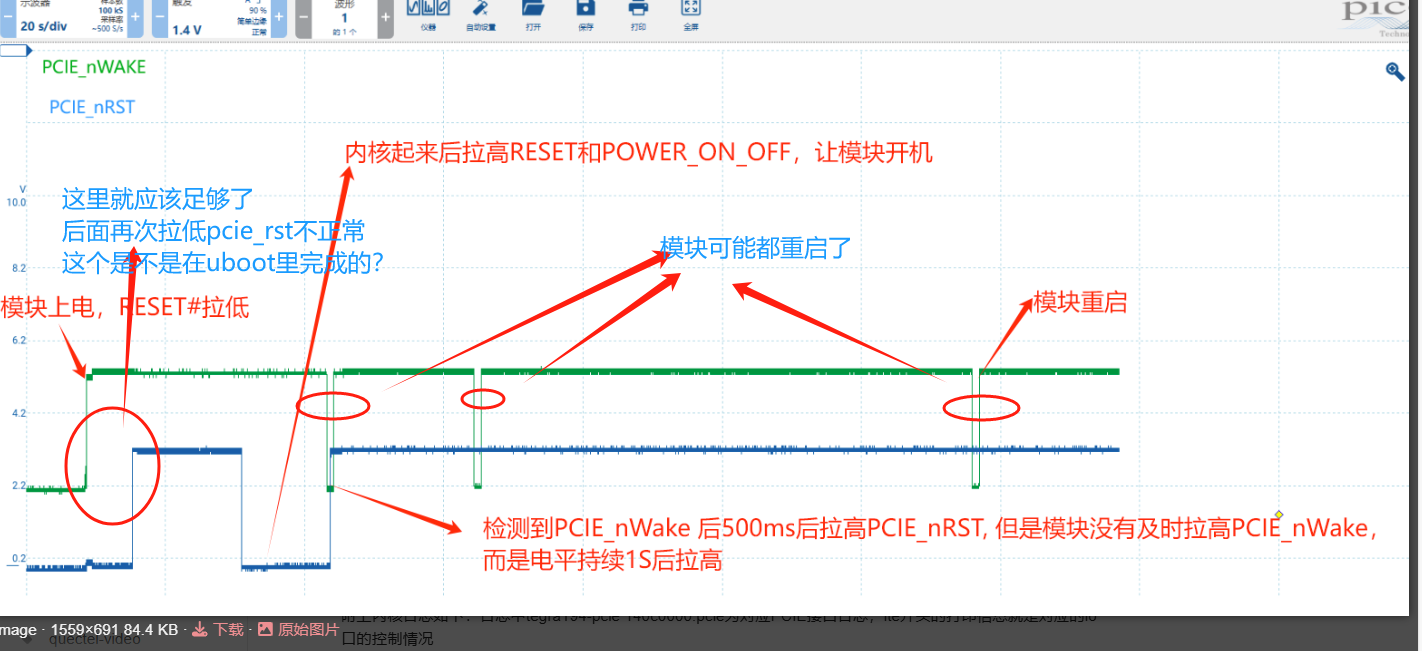

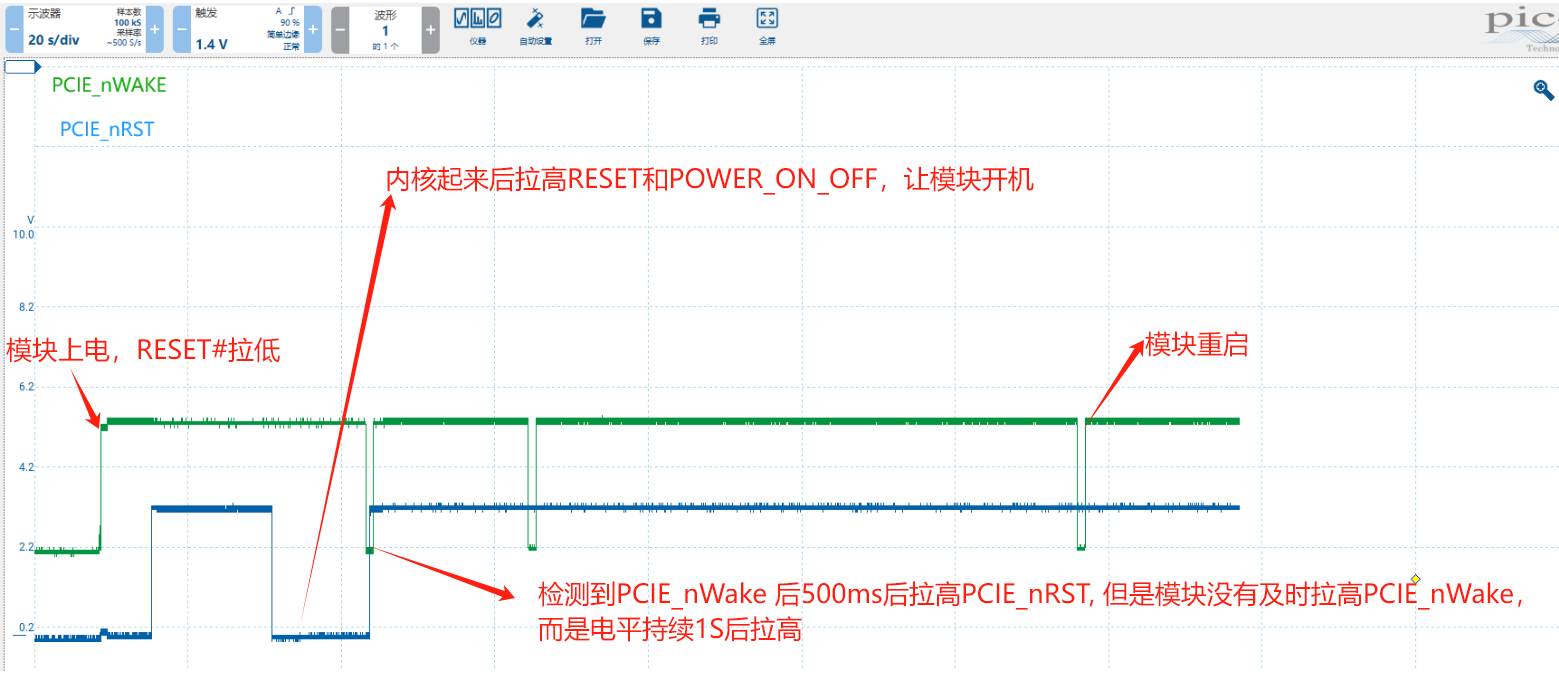

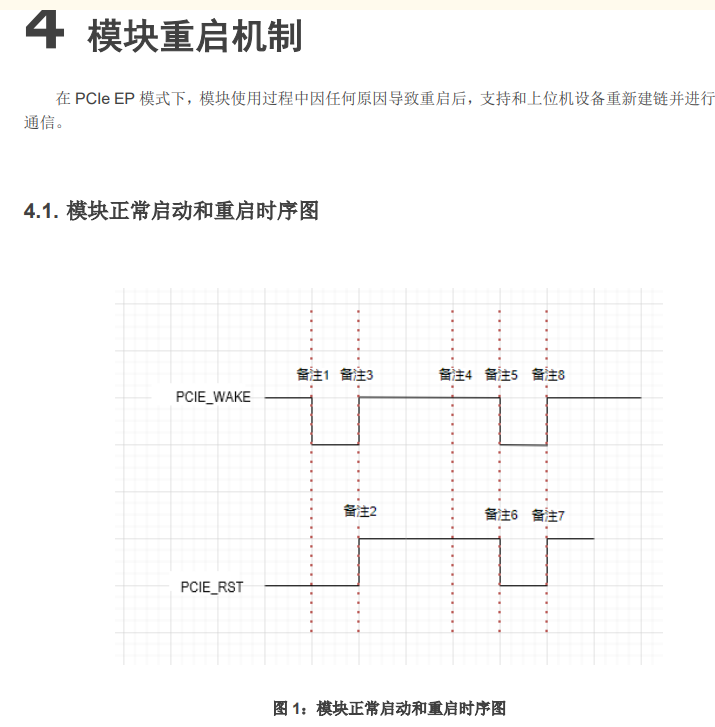

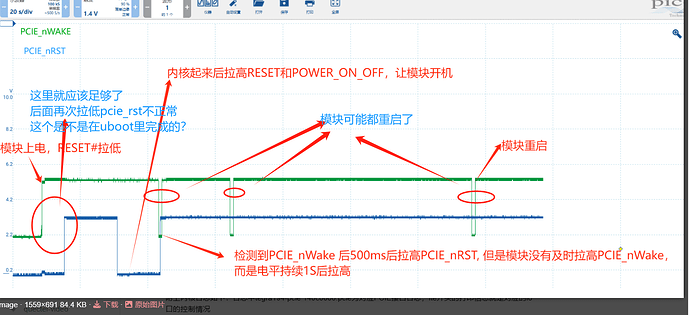

我们安装文档要求调整时序图后，故障和之前一样，下图是示波器抓的PCIE_nWake和PCIE_nRST的波形。

附上内核日志如下：日志中tegra194-pcie 140c0000.pcie为对应PCIE接口日志，lte开头的打印信息就是对应的io口的控制情况
MobaXterm_192.168.55.1nvidia_20250517_220715.txt (133.1 KB)

从现象级上次抓的dump信息看，模块是一只在重启的，dump信息显示模块内核崩溃。

BiaoWang-Q · 2025 年5 月 18 日 09:04

MichaelYoung · 2025 年5 月 19 日 06:25

你标注的位置是在boot层， boot层RESET#没有释放，模块还是处在未开机状态。到了内核层才开机的，也就图中第一次PCIE_nWake的前几秒，才释放的RESET#。图总一格是20S。我理解第一次PCIE_nWake下降沿就是模块开机完成后拉的，我们在500ms左右释放PCIE_nRST了，但是模块还是持续了1S的低电平。后续都是模块在重启，我不理解为什么为重启（抓dump是模块内核崩溃）。也不理解为什么我们释放PCI_nRST没起作用。

BiaoWang-Q · 2025 年5 月 19 日 10:42

我现在能给的一个建议是：

如果uboot（bootloader）里有PCIe 驱动可以拿掉；
将模组的上电放在uboot 里完成（太早或者太晚都不行，和RC一起开机太早了，进了kernel再开机太晚了，得改pcie 控制器的程序），一般能使用这个5G模块。

MichaelYoung · 2025 年5 月 26 日 09:11

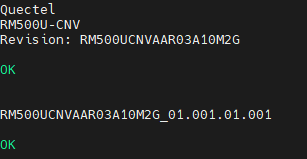

是有与固件版本有关？我们用的版本如下，如果需要升级，请发一下相应的版本给我605276334@qq.com. 谢谢

MichaelYoung · 2025 年5 月 26 日 09:11

uboot中无法去掉PCIE驱动，所以我们还是在内核中进行了开机。我们修改pcie驱动，使其在PCIE_nWake拉低后在加载。测试后还是同之前一样的问题：我们释放PCIE_nRST,模块并不会立即释放PCIE_nWake, 这与文档不符，随后模块周期性的重启（模块debug日志显示内核crash）。能否给我们一个成功的时序图参考？或者给我们一些其他调试建议。

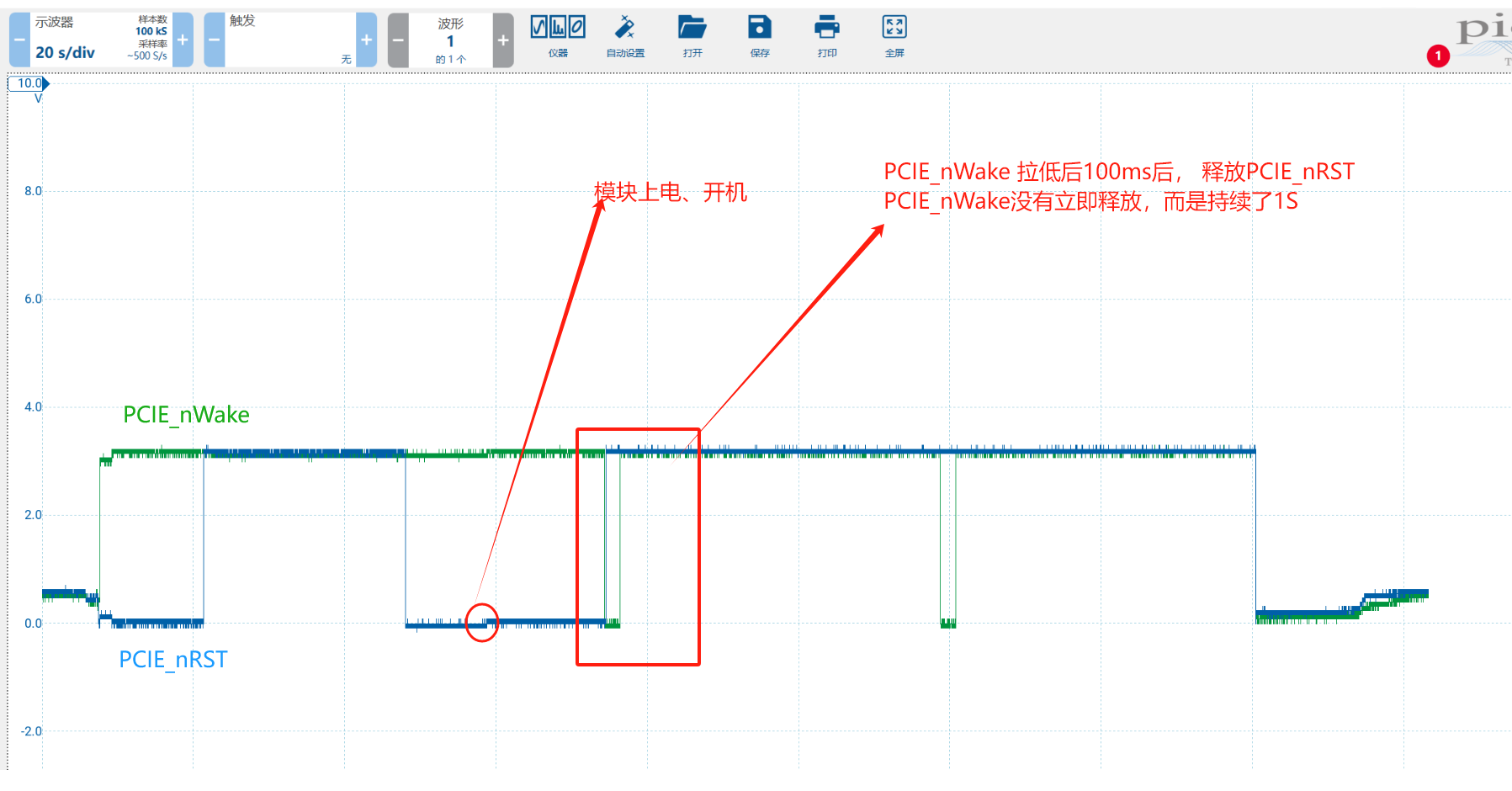

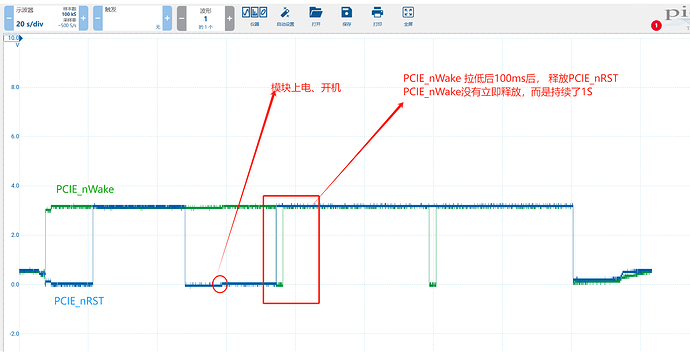

附PCIE_nRST与PCIE_nWake上电开始的波形、主控日志、模块日志

MobaXterm_COM11USB-SERIALCH340COM11_20250522_231819.txt (24.0 KB)
MobaXterm_COM14WCHUSB-SERIALChCCOM14_20250522_231830.txt (104.3 KB)

BiaoWang-Q · 2025 年5 月 26 日 13:30

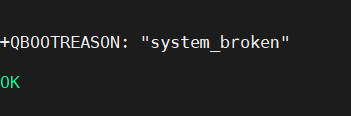

AT+Qbootreason 可以查下开机原因。
从日志看你就模块没有crash但是有一次重启。

那就要在内核里重启模块，这个就要自己去改主控的pcie 控制器的驱动了，在检测到模块的第二次开机后（检测到pcie_wake 从低到高），再去执行pcie 枚举。

这个时序图可以参考
Quectel_RGx00&URM500U系列_PCIe驱动_用户指导_V1.1.pdf

MichaelYoung · 2025 年5 月 30 日 01:00

修改PCIE控制器去处理第二次开机任无法正常使用，模块一直重启。
重启原因如下：

我有以下几个疑问：
1、模块版本是否有要求
2、 PCIE_nWake拉低后，需要在多少时间内释放PCIE_nRST
3、 PCIE_nWake释放后，需要在多少时间范围内进行枚举
4、模块为什么重启？
